Bright 55 Lumen Output
HDMI (1080P) Resolution Output
15,000 Hour LED Light Source
Onboard Video, Picture and Music Player
Works with iPhone and Galaxy

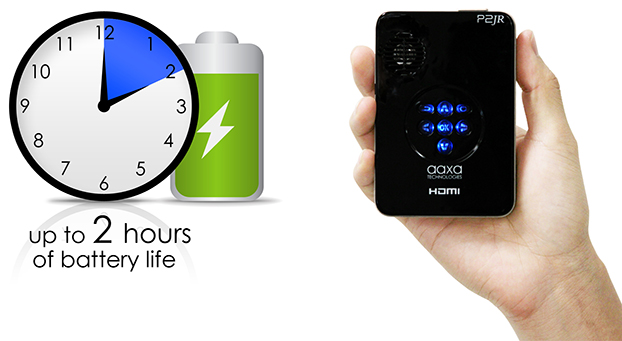

2+ Hour Battery Life

Product Brochure

MSRP: $249 $199

AAXA P2 Jr User Manual

LED Projectors versus UHP Projectors

1. How do I connect my P2 Jr to an iPod/iPhone/iPad via HDMI?

These are the steps to connect via HDMI (an Apple HDMI adapter is required)

Turn on the projector and your iPod/iPhone/iPad.

Plug in your Apple HDMI adapter into the bottom of your iPod/iPhone/iPad.

Insert the HDMI cable into the bottom of the adapter and the other end of the cable into the mini-HDMI port in the P2 Jr.

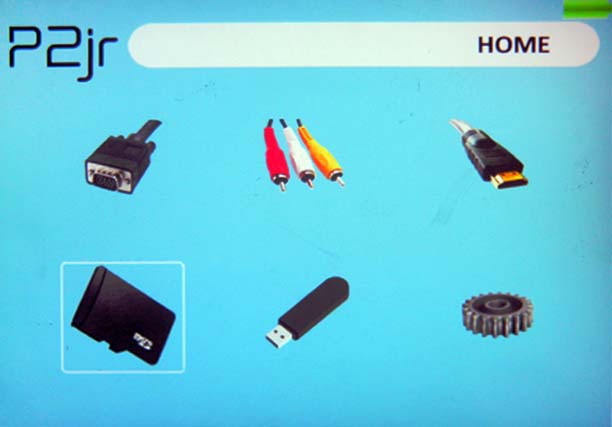

Choose HDMI on the P2 Jr home screen.

2. How do I connect my P2 Jr to a Samsung Galaxy S3, S4 or Note 2?

...

3. How do I convert my movies to a supported file type the P2 Jr can read?

Here are some tips on how to play supported videos on your AAXA P2 Jr Pico Projector.

There are many types of codecs for AVI and MP4. So even though a file may say it is an AVI or Mp4 extension, it may be using a codec that the projector doesn’t recognize.

Please try the following:

Go to format factory and download the converter application. We have had great success with this free and lightweight conversion program. Use it to convert your video to AVI and that should do the trick. If it does not, it may be because your video is too big and you can try a smaller resolution for your projector. Your USB or SD card must also be under 16GB in size.

4. How do I connect my P2 Jr to a computer?

The P2 Jr Pico Projector can be connected to your computer either through the HDMI input or VGA input.
To connect via HDMI or VGA input

Turn on both your computer and your AAXA P2 Jr Pico Projector.

Plug in the larger end of the HDMI cable or VGA cable into your laptop.

On the P2 Jr. homescreen, choose source and then choose either HDMI or VGA resolution.

On the Laptop display, RIGHT CLICK on the desktop and say Properties.

Click on the SETTINGS tab (far right) If you want your displays Mirrored, (what is on the internal display is on the projector) you should make sure the box next to " Extend my Windows desktop into this monitor" is UNCHECKED. Some older systems have a “ mirroring” box, check that if you see it and want mirroring. If you do not want mirroring, skip the next section and continue with 5a below, then return to #8 of the section immediately below.

NOTE: The following steps apply if you are running your PC in MIRROR mode only. If you do NOT want mirrored displays (internal and external display different things), CHECK the box next to the line that says "Extend my Windows desktop into this monitor." This SHOULD cause the external monitor to display a picture which is an EXTENSION of the current desktop.

Drag the screen slider to 1200x768 (if your laptop will let you.) Typically, the external monitor MAY limit this setting. If your screen display is higher, it might not display on the projector, so you might want to test this before you are ready to speak. Drag the color quality to Highest (32 bit) if available, or Medium (16 bit) if the first is not available.

Now, look at your keyboard. Typically, one of the function buttons will have the words CRT/LCD or perhaps a small picture of a monitor on it. Note this key for future use. On a Dell, it is typically F8. And I have seen it in F5 as well. Your machine's keys will vary, but it should be there. Holding the FUNCTION KEY (FN), Press the proper function button ONCE and wait. After a few seconds, the second display should come on. Be patient, this can take up to 5 seconds. On the projector, it may take up to 10 seconds for the projector to detect your system and switch. Note: a second press of this function will (usually) switch to EXTERNAL monitor only. A third press will go INTERNAL only, and around the circle for each press after that. Also note that some laptops may do this sequence in a different order, so learn your system so you can quickly switch to the mode you want.

Click on the ADVANCED button. If "apply the new display settings without restarting" is not selected, select it. Under Screen Refresh Rate, select 60 Hz. Click APPLY and CONFIRM the choice. Click OK to close the ADVANCED dialog window. Close the Display Properties Dialog. You should now see a mirroring of your monitor on the second monitor

Testing: As a test, disconnect the second monitor, put your laptop to sleep. Wake it up and let it fully come up (log-in if necessary), and then reconnect the external monitor. On some machines, it should quickly display the screen in the last known setting (you may need to wait up to 10 seconds.) If it does not display correctly, press the monitor switching function key ONCE. Again, note that it may take up to 10 seconds to display, so be patient. If only the projector now displays, a few presses of the switching function key should bring it around to both displays again. If you cannot get the projector to display, recheck all your connections and settings stated above.

Note that when using the Projector, after pressing the Function key for the monitor change, it may take up to 10 seconds for the monitor to find and lock on to your machine. Just wait for it. Pressing the FUNCTION key again may simply mess up your settings or switch the projector off.

When you arrive at the front of the room to speak, connect your monitor to the display cable (BRING YOUR ADAPTERS FOR YOUR LAPTOP TO VGA IF NEEDED.) When the monitor switch is switched to display your laptop on the projector, it should detect the display and just show up, but some systems will not automatically switch. Again, if this does not happen, you may need to press your display function key to switch on the external monitor.

few more notes on this: Not all laptops work the same way, and there are some differences in Windows OS releases on the order of the switching functions. You should learn how yours works BEFORE you get to the stage. Also, I noted a difference between computers put to sleep before connected, and systems which have not been put to sleep. If the computer was connected to an external display, disconnected and then reconnected with no sleep in-between, the external monitor should come right on when connected. However, on most of the systems I tested this on, if the laptop went to sleep between connections, it required using the switching function key to get the screens back on UNLESS the display was connected before waking the unit. On two Dell’s, pressing this key brought back the projector, but not the internal display, requiring two more presses of the key to get both displays on. Chalk it up to different hardware and software releases.

When done, disconnect the external monitor. From the display menu drop down, you can reselect your desired display resolution.

5. How do I view files from my USB on the P2 Jr?

The P2 Jr. can play media files off of a USB flash drive by easily connecting the USB stick into the USB port located on the P2 Jr.

Connect your USB flash drive to your computer.

Drag your desired video and photo files directly into your USB flash drive folder located on your Desktop screen.

Disconnect your USB flash drive and connect it directly to the USB port on the P2 Jr.

Turn on the projector and select the USB source on the main menu.

Select the media file that you wish to play and enjoy!


Max Input Resolution:	1920x1080 (1080P)

Brightness:	55 Lumens

Contrast Ratio:	1000:1

Projection Lens:	Manual Focus

Projection Image:	Available Size 10 ~ 50 inches

Lamp:	Triple RGB LEDs with Vibrant Color Technology Life 15,000hrs


Audio Output:	1W stereo speaker Stereo speaker/headphone mini-jack

Color:	Gloss White/Black

File Playback:	USB Memory Stick reader microSD Card Reader (up to 16GB)

Menu Language:	English, French, Dutch, Chinese, Portuguese

Aspect Ratio Control:	16:9

Throw Ratio:	1.4

Dimensions:	4.2" * 2.9" * 0.8"

Weight:	0.3 lbs

Power Consumption:	6W

Supported Formats:	MP4 / MP3 / AVI BMP / JPG / GIF / TXT

Conformances:	CE, FCC Class A


Video In:	mini-HDMI mini-VGA Composite A/V (3.5mm Jack)

Audio Out:	3.5mm Stereo Headphone Jack

USB:	5 Pin USB 2.0

Bright and Rich Color Saturation	Capable of 50" Images in Dimly Lit Room
Stunning Black and White Coloring	Great Performance Even in Bright Room


Screen Diagonal (inches)	Screen Distance (inches)

8	10

12	15

16	20

24	30

31	40

39	50

47	60

55	70


	AAXA MHL Cable for Samsung Galaxy S3 and Galaxy Note 2 High Quality MHL Cable for Samsung Galaxy S3 and Galaxy Note 2 Supports 1080p HD video and digital audio output NOT COMPATIBLE with 5 pin Android devices Additional Product Info MSRP: $25.00 $19.99

	"This is a great little projector and the quality that this projector provides at a low price ($499 on the AAXA website) and tiny package are remarkable."
