AAXA Technologies is pleased to announce the release of the AAXA M1 Micro Projector. The new M1 Micro Projector features an ultra-bright optical engine (Limited: 75 lumen, Plus: 66 lumen), a native 800x600 resolution, and is designed for the professional user.

The AAXA M1 micro projector is the brightest "ultra-portable" projector in its class. With its 66 lumen output the M1 projector is capable of producing high resolution images greater than 100" in dark areas and up to 40" in lighted areas. The M1's advanced light engine eliminates rainbow issues be removing the color wheel and is optically enhanced and features improved color quality, sharpness, and uniformity over other projectors in its class.

The M1 micro projector is available in three flavors - Standard, Plus, and Limited.

M1 Standard (Discontinued):
      - Supports Composite A/V Input & Supports USB Video Streaming

M1 Plus:
      - Supports VGA & Composite A/V Inputs

M1 Limited:
      - Brightest at 75 lumens with better colors and all of the features of the M1 Plus

All M1 models feature a new high-speed video and image processor that supports up to 1280x720 resolutions at 30 frames per second, a SD card slot accepting up to 8GB SD cards, and 1GB of onboard memory. Coupled with dual 1 watt speakers and a composite A/V input port the M1 projector is the perfect portable entertainment unit or stand-alone presentation device that eliminates the need for a bulky laptop or video player attachment.

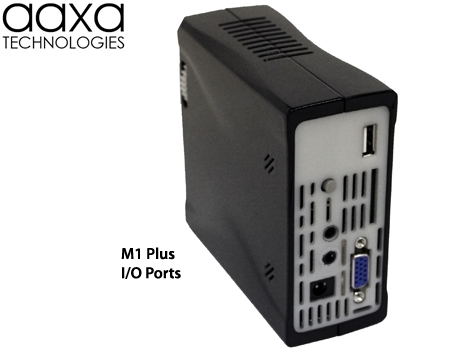

The M1 Plus model adds a VGA port (15-pin) that accepts computer VGA signals of up to 1280x960 resolutions.

The M1 Limited model boasts an improved 75 lumen LED in addition to all the features of the M1 Plus.

Additional features include infrared remote control, A/V composite video input, 3.5mm audio output for headphones or external speakers, ultra quiet 22db operation, and a mini power supply for ultimate portability.

Optional accessories include an external battery for 1.5 hours of portable operation, and iPhone, PSP, Zune, Nokia, Samsung, iTouch, and AV out cables for smartphone device connectivity.


Super Color and Image Quality

---

Wider color range & deeper color saturation.
The single LED light source eliminates motion blur and color break up ("The Rainbow Effect")


Lasts Forever

---

Unlike conventional Lamp-based projectors, the M1's LED lamp never needs to be replaced. (15,000 hours)

Real Quick ON & OFF

---

The LED Lamp enables the M1 to achieve full brightness within 5 seconds, as there is no bulb warm-up time. Of course, it turns off instantly as well.

Versatile Multimedia Support

---

• Onboard media player supports popular file formats


• Share movies, videos, photos with friends and family


• Bring presentations anywhere and everywhere


• Enjoy gaming and entertainment without large TV's

Environmentally Friendly

---

The LED Lamp consumes less power. The LED Lamp is also 100% free of mercury and, as the bulb never needs to be replaced, there are no discarded bulbs.

PROJECTION SYSTEM	M1 Standard	M1 Plus	M1 Limited
Native Resolution:	SVGA (800x600)	SVGA (800x600)	SVGA (800x600)
Brightness:	66 ANSI-Lumen	66 ANSI-Lumen	75 ANSI-Lumen
Contrast Ratio:	1000:1	1000:1	1000:1
Noise:	22 dB	22 dB	22 dB
Projection Lens:	Manual Focus	Manual Focus	Manual Focus
Projection Image:	Size 10 ~ 100 inch	Size 10 ~ 100 inch	Size 10 ~ 100 inch
Lamp:	Single Chip White LED Life 15,000hrs	Single Chip White LED Life 15,000hrs	Single Chip White LED Life 15,000hrs
Aspect Ratio:	4:3	4:3	4:3
Projection Angle:	33.4°	33.4°	33.4°

GENERAL SPECIFICATIONS
Audio Output:	Stereo 1w speakers Stereo speaker/headphone mini-jack	Stereo 1w speakers Stereo speaker/headphone mini-jack	Stereo 1w speakers Stereo speaker/headphone mini-jack
Color:	Gloss Black	Gloss Black	Gloss Black
Storage Capacity:	Built in 1Gb flash memory + SD card reader	Built in 1Gb flash memory + SD card reader	Built in 1Gb flash memory + SD card reader
Menu Language:	English, French, Spanish, German, Italian	English, French, Spanish, German, Italian	English, French, Spanish, German, Italian
Dimensions:	112*105*46mm	112*105*46mm	112*105*46mm
Weight:	13.6oz	13.7oz	13.7oz
Power Consumption:	30w	30w	30w
Power Supply:	AC100~240V(Free Voltage) 50Hz/60Hz	AC100~240V(Free Voltage) 50Hz/60Hz	AC100~240V(Free Voltage) 50Hz/60Hz
Supported Formats:	AVI/MP3/3GP/RMVB/RM/VOB/DAT/JPG	AVI/MP3/3GP/RMVB/RM/VOB/DAT/JPG	AVI/MP3/3GP/RMVB/RM/VOB/DAT/JPG
Conformances:	CE, UL, FCC Class A	CE, UL, FCC Class A	CE, UL, FCC Class A

INPUTS / OUTPUTS
Video In:	Composite A/V (3.5mm Jack) USB-Display w/ UVTool	1280x960 VGA Input (15-pin) Composite A/V (3.5mm Jack)	1280x960 VGA Input (15-pin) Composite A/V (3.5mm Jack)
Audio Out:	3.5mm Stereo Headphone Jack	3.5mm Stereo Headphone Jack	3.5mm Stereo Headphone Jack
USB:	5 Pin Mini USB	5 Pin Mini USB	5 Pin Mini USB

INCLUDED ACCESSORIES

Infrared Remote Control, Composite A/V Cable, USB Cable, AC Adapter

Comparison of AAXA Projectors

	AAXA M1 iPod A/V Cable Carries audio/video signals Full VGA (640x480) resolution Works with iPod, iPhone, iTouch Additional Product Info MSRP: $25.00  $19.99		AAXA M1 PSP A/V Cable Carries audio/video signals Full VGA (640x480) resolution Works with all PSP 2000/3000 Additional Product Info MSRP: $25.00  $18.99
	AAXA M1 1.5-Hour Battery 1.5-Hour power source for M1 Powers/charges 12V devices Powers/charges 5V USB devices Additional Product Info MSRP: $99.00  $79.00		AAXA M1 Zune A/V Cable Carries audio/video signals Full VGA (640x480) resolution Works with Zune 30/80/120 Additional Product Info MSRP: $18.00  $12.99

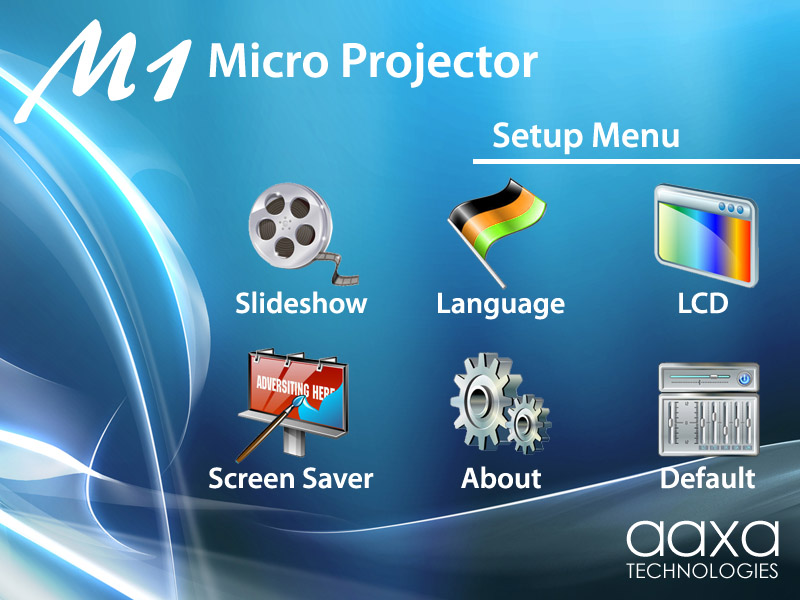

Onboard Menu

IMAGE IN A DIMLY LIT ROOM IMAGE IN A DARK ROOM

IMAGE IN A DIMLY LIT ROOM IMAGE IN A DARK ROOM

80 INCH IMAGE IN DIM ROOM 80 INCH IMAGE IN DARK ROOMM

Text Comparison (AAXA's optical engine offers Superior Text reproduction)

M1 Projector with XBox

Reviews submitted by users   AAXA tech M1 Micro Projector 66 Lumens, SVGA resolution, Onboard Media Player Aaxa M1 micro projector review   AAXA M1 66 Lumen micro projector - Xbox AAXA M1 micro projector used with digital camera

  M1 Standard (Discontinued) User Manual

  M1 Plus User Manual

  M1 Limited User Manual


Q. What is the USB-Display function?

A. The USB-Display function allows users to project their monitor display through the M1 projector. This is done by digitally encoding screen-captured images and transmitting this to the M1 projector via the USB port.

Q. Can the M1 projector support a USB-Display function?

A. Yes the M1's chipset can support the USB-Display function through a reflash and the use of third party software and drivers.

Q. Where can I get the USB-Display reflash and third party software and drivers?

A. Only the M1 Standard can support the USB-Display function through a reflash and the use of third party software and drivers. The M1+ and M1 Limited employs a direct 15-pin VGA connection.

Q. How do I view pictures from my digital camera on the M1?

A. Please click here to see instructinos on how to insert your camera's SD card into the M1

Q. How do I connect my camera to the M1?

A. Please click here to see instructinos on how to connect your camera to the M1
